Seismology Instruction with the AS 1

Data Identifi cation and Event Location

  Searching for Current Events in NEIC (National Earthquake Information Center)

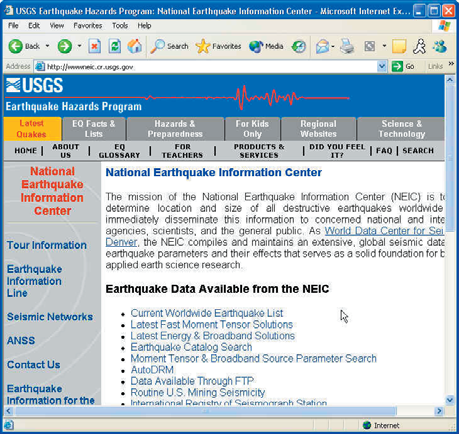

   Launch your browser and go to:

http://wwwneic.cr.usgs.gov

Select

Current Worldwide Earthquake List

 Events from the last 7 days will be displayed

  Searching for events from the last month:

  Scroll down and click on

Last 8 30 Days of Earthquake Activity

  Searching with NEIC

   Launch your browser and go to:

http://wwwneic.cr.usgs.gov

Select

Earthquake Catalog Search.

 Scroll down and select Global (Worldwide).

   Use the default selection for the Output File Type

 and

Database.

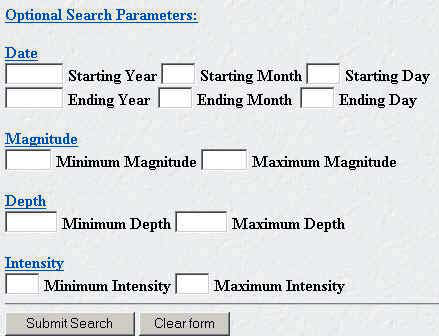

   In the Optional Search Parameters fi ll in a date

range to narrow down the records.  It is not

 necessary

to

fi ll in all the fi elds.  NOTE:  If you

enter a  minimum magnitude, the site  requires a

value for the maximum magnitude.

   Click on Submit Search

  Site Output:

When the search is complete, you will see a table of data in your browser window.

Catalogue

Day

Time

Depth

Magnitude

Month

Latitude

Longitude

AmaSeis Version 1.0 Level 2005.05.19

4.10
