nature (text field, selection box, etc.). Within this window you can specify the new item value: press

the Enter key to confirm, and the Esc key to cancel the editing (the previously defined value will be

used then).

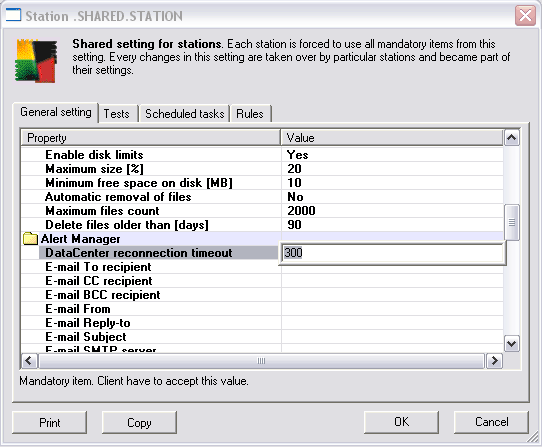

The configuration editing window is always displayed in the same manner, although there can be

differences according to whether you are editing the user, station, or group configuration:

If there is a mandatory record defined in shared user/station settings, its value is prior to the

value defined in the configuration of the station or user. Also, it is not allowed to edit it. There is a

red lock sign displayed on the left side next to the record.

If there is a record defined as optional in shared user/station settings, but it exists as mandatory

in the shared settings of the respective group, its value for group takes priority over the

station/user settings. The difference in the graphical display is the same as in the previously

described case expect for the color of the lock   it is blue for group mandatory settings.

b)

Tests and Scheduled Task Configuration Editing

We recommend performing all test/task configuration editing within the

Global settings

 section.

However, if the administrator only wants to overview the current user/station configuration, or to

change a specific user/station configuration, a test/task configuration window can be used.
