1  Introduction

1.1  General Description

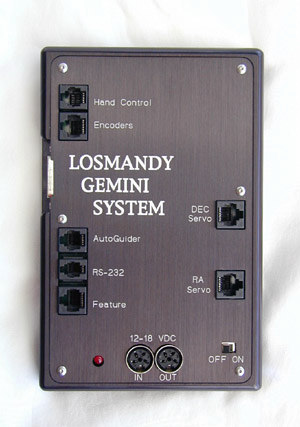

The Gemini Astronomical Positioning System is a

professional level computerized device for controlling

small to medium German equatorial telescope mounts.  It

was conceived and designed by Rene Gorlich (working in

close collaboration with Scott Losmandy, Norman Diehl

and others)

1

 as a tool for locating and tracking celestial

objects, and for organizing both visual observation and

astronomical imaging sessions.  Even at its first release as

Level 1 (November 2000), it could be used as a

completely standalone system, or be controlled from a PC

using planetarium software or the Gemini Control

Program (GCP) developed by Daniel Gorlich.  Each

subsequent upgrade (Levels 2 and 3) added to its

functionality, its convenience of operation, and its remote

control capabilities.

The Gemini has many features to help you be efficient

and save time in your astronomical observations.

Although most should be intuitive, careful reading of this

manual will shorten your learning curve and ensure success.

One unique feature of the Gemini is its ability to perform all of its functions by

navigating multiple menus using only five buttons and a single LED readout.

While the alternative would be a control panel with multiple specialized controls,

the simplicity of the Gemini system allows for almost unlimited upgrade without

rendering the basic hardware obsolete.

The Gemini is available as a retrofit kit, or pre installed on your telescope mount at

the factory.  The most recent version of Gemini s software, Level 3, is provided

with all new telescope mounts.  This level is also available as a simple plug in

upgrade to anyone who already owns Level 1 or Level 2.

1

Rene Gorlich:

  Original concept, control electronics, and all software programming, except for the servo subsystem.

Scott Losmandy:

 Had developed a servo motor board at Aveox, Inc., developed all the mechanical parts, named the

combined/finished device "Gemini," and is the producer.

Norman Diehl:

Co developed control electronics for the

stepper motors (including DSC capabilities), and assisted with development of Gemini's circuitry and board layout.

George Radda and David Palombo:

 Developed the servo control, final board layout, and software for the servo

processor's manufacture (at Aveox, Inc.).

Wolfgang Steinicke:

Revised NGC/IC catalogue.

Peter Ward:

Southern

hemisphere testing.

Many ideas for features and improvements from all.

Gemini Users Manual

1
